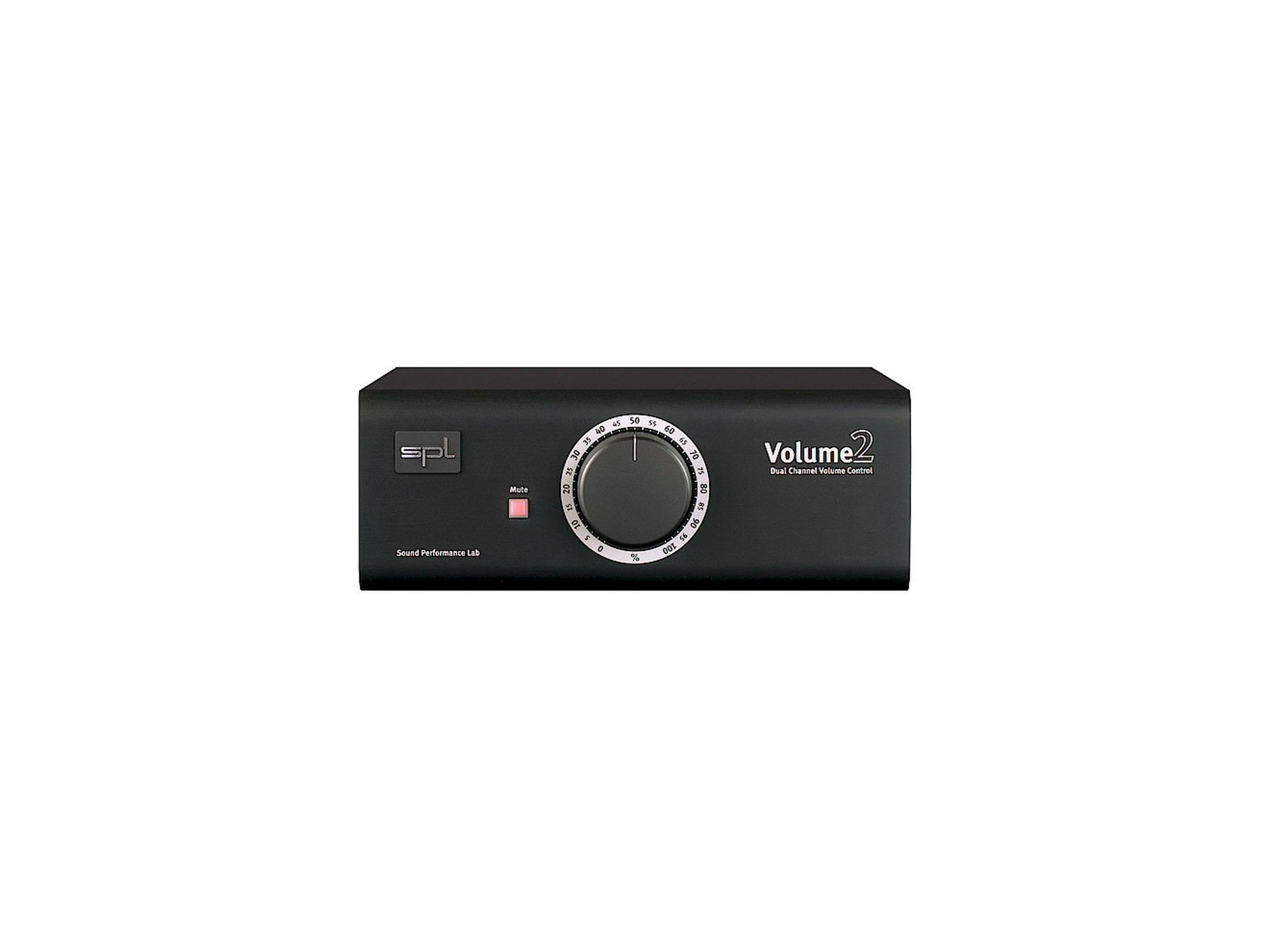

SPL Volume 2

Apraksts

• Transformerless, electronically-balanced (differential) instrumentation amplifier
  • Inputs/Outputs:
  • Nominal Input Level: +4dBu
  • Input Impedance: =22kOhm
  • Output Impedance: 600Ohm
  • Max. Input Level: +20dBu
  • Volume Gain: to -4dB
• Measured Data:
  • Frequency Range: 10Hz-100kHz (100kHz = -3dB)
  • CMRR: 60dBu@1kHz
  • THD: & N (@ +15dBu Input Level) -100dBu
  • S/N A-weighted: -102dBu
  • Crosstalk L/R (@ 1kHz): -80dBu
  • Dynamic Range: 120dB
• Power Supply:
  • Toroidal transformator: 3.5VA
  • Fuse: 250mA/230V. 500mA/115V
  • Voltage Selector: 230/50Hz 115V/60Hz
  • Power Consumption: ca. 15W
• Dimensions and Weight:
  • Housing: 8.5″ x 3.1″ x 8.8″
  • Depth including potentiometer and sockets: 9.8″
  • Weight: 3.52 lbs.

More Info: Volume2
