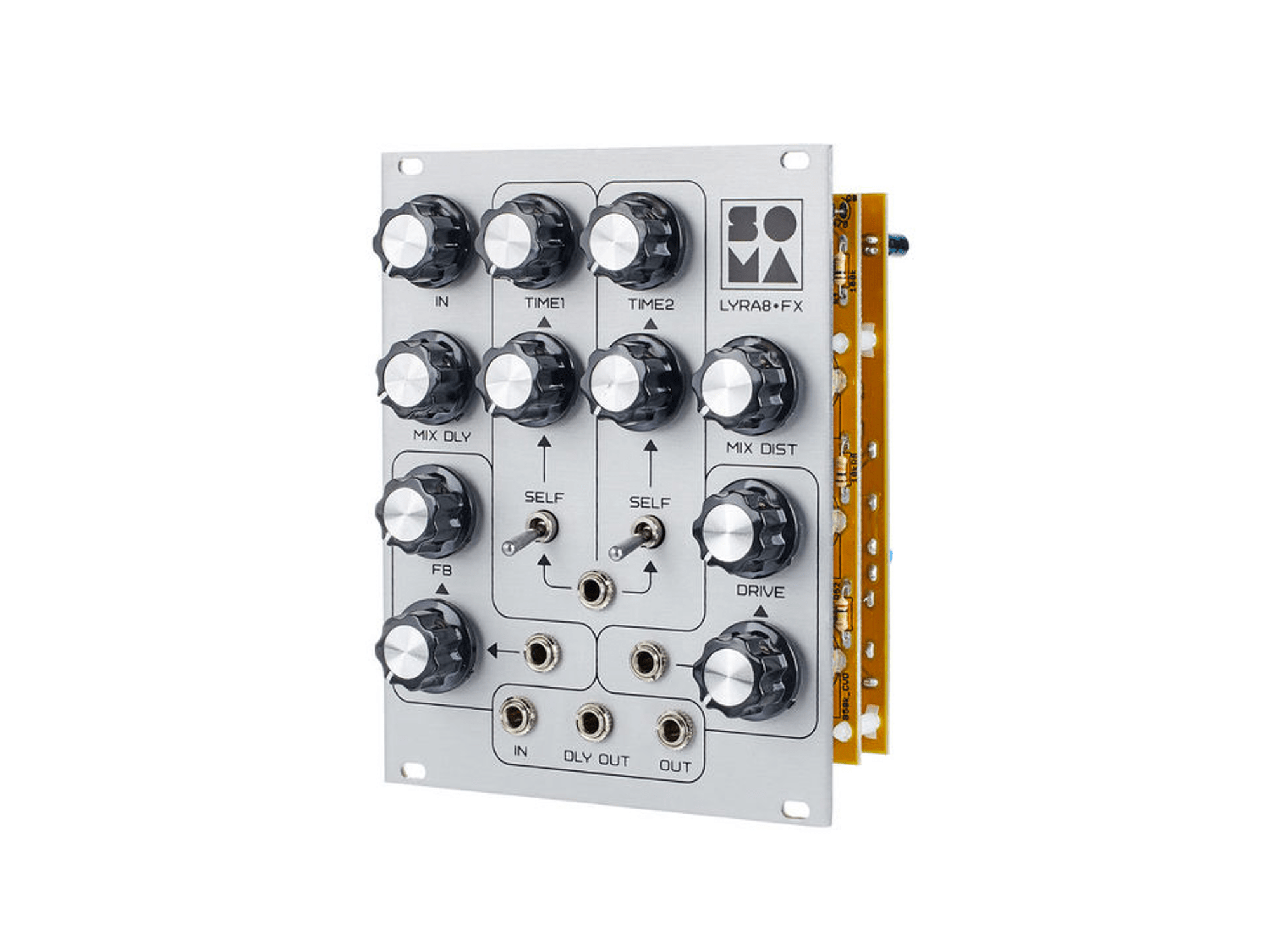

LYRA8-FX is a processor that can give you a significant part of the mysterious LYRA-8 sound thanks to the FX section from the LYRA-8, expanded with CV controls and packed into a Eurorack module.previous arrownext arrow
It contains a double modulated lo-fi delay with cross-feedback and the unique possibility of self-modulation, where the delay output signal modulates its own sample rate. Also, it packs a parallel distortion with CV control of the drive. The distortion is after the delay. It’s much more than a delay – you can get a simple reverb, comb filter, chorus and much more cool FXs which are hard to describe.It has a famous LYRA-8 build quality – no SMD, no twisted plastic shafts, no crappy parts.Pots:
- – IN volume
- – Stage 1 delay time
- – Stage 2 delay time
- – Stage 1 delay time modulation depth
- – Stage 2 delay time modulation depth
- – Delay feedback
- – Delay feedback CV amount
- – Delay mix
- – Distortion drive
- – Distortion mix
- – Distortion drive CV amount
Switches:
- – Stage 1 delay time modulation source
- – Stage 2 delay time modulation source
Ins:
- – Audio in
- – Delay time CV
- – Delay feedback CV
- – Distortion drive CV
Outs:
- – Main audio out
- – Delay only out
Dimensions:
- – Width – 20HP
- – Depth – 40mm
Power consumption:
- +12V – 90ma
- -12V – 20ma
More Info: SOMA Lyra8-FX
