Apraksts

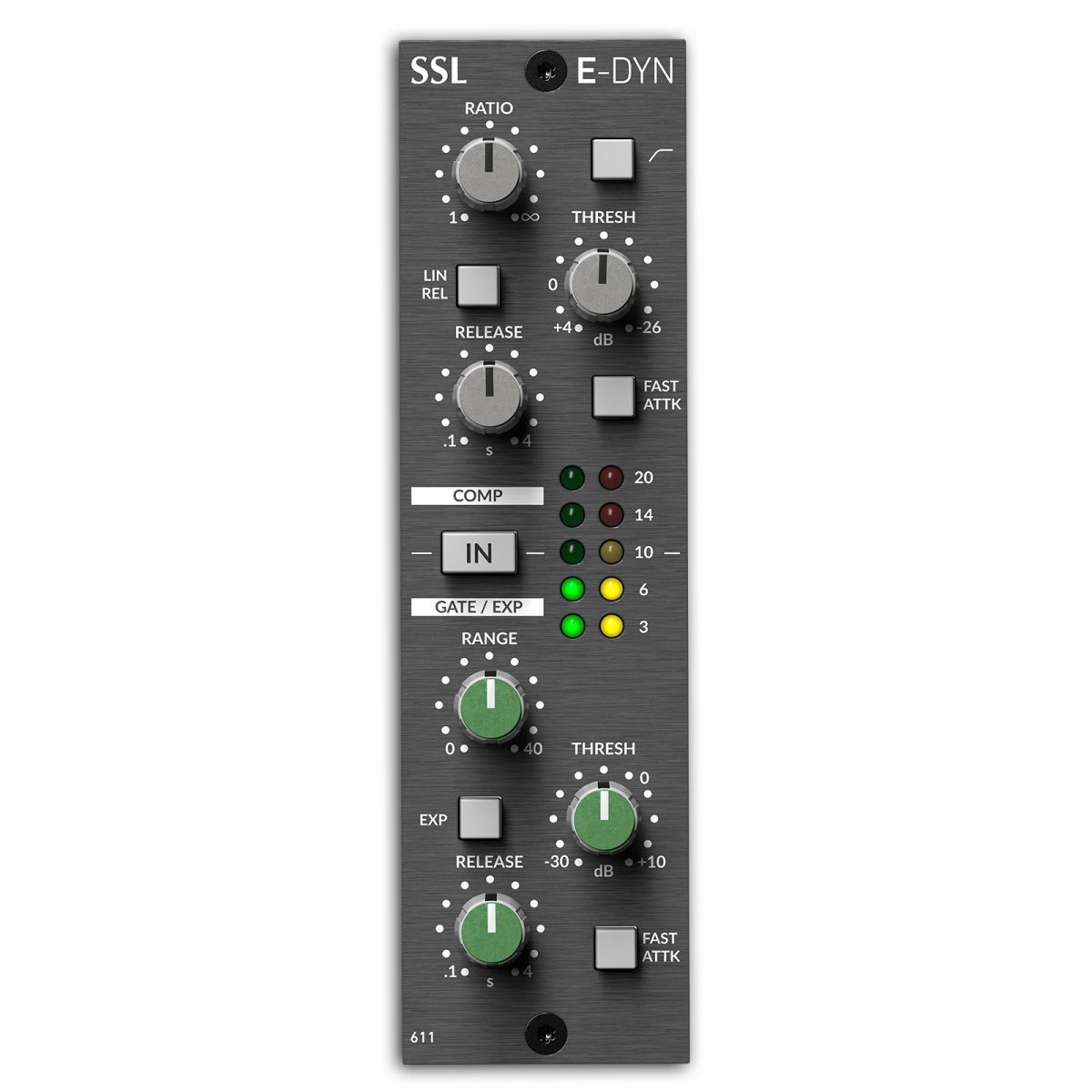

The E Series Dynamics Module reproduces the legendary sonic signature of the SL 4000 E console channel strip. The E Series Dynamics Module features a compressor/limiter and an expander/gate, both of which return faithfully to the circuitry and key components which define the sound of the original SL 611E Series channel strip. A true RMS converter is used in the side chain while the gain element is an all discrete design identical to the Class A VCA chip used in the original unit. The compressor contains additional switching options to defeat the over-easy curve and to use a linear release instead of the more usual logarithmic curve. The result is a compressor with three distinct voices, each with its own musical character.
- 500 series
- Compressor Limiter
- SSL 4000 Series circuit
- Class A VCA Replication
- Expander / Gate
- Is based on the classic 611E Console Channel Strip
- Construction: API Series 500 format
- Requires a 500 slot
