Apraksts

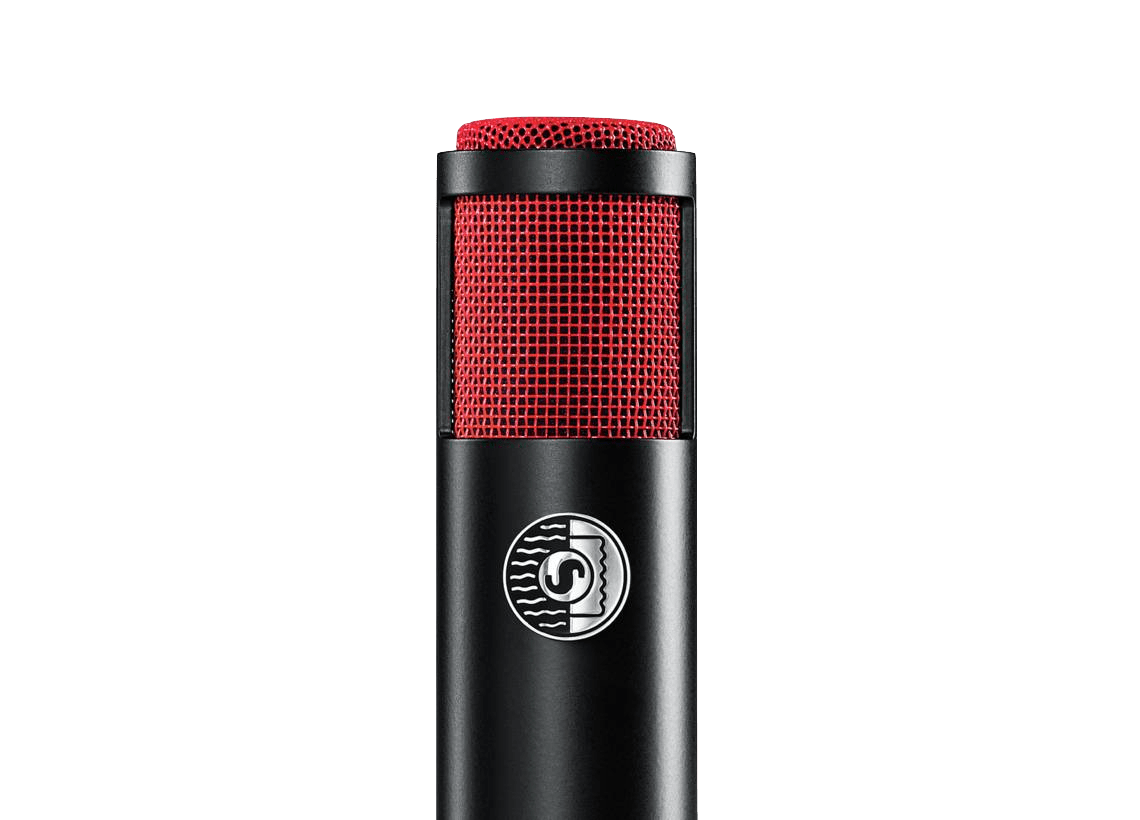

The KSM313 is a premium bidirectional ribbon microphone for world-class audio recording and performance. The “Dual-Voice” design features discrete front and rear sonic signatures to accurately capture intimate vocals or intricate instrumentation.

The KSM313 is hand-assembled from state-of-the-art transducers, transformers and metals as the pinnacle of Shure quality. The revolutionary Roswellite® ribbon material replaces traditional foil ribbons with high tensile strength, toughness and shape-memory, providing superior resilience at extreme sound pressure levels (SPLs).

Specifications

Type

Dual-Voice Roswellite® Ribbon

Polar Pattern

Bidirectional

Frequency Response

30 to 15,000 Hz

Output Impedance

330 Ω

Sensitivity

open circuit voltage, @ 1 kHz, typical

-54.5 dBV/Pa [1] (1.88 mV)

Maximum SPL

146 dB SPL

Polarity

Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Housing

Machined Steel

Weight

400 g (14 oz.)

Accessories

Furnished Accessories

Carrying Case	AK313C
ShureLock® Stand Mount. Works with KSM313/NE, KSM313, KSM 353/ED.	A300M
Protective Velveteen Pouch. Works with KSM313/NE.	A313VB

Optional Accessories

Elastic suspension shock mount. Works with all KSM313 versions	A313SM
Switchable Polarity Reverser	A15PRS
Popper Stopper® Pop Filter with Metal Gooseneck and Microphone Stand Clamp	PS-6
25 foot (7.5m) Triple-Flex® Microphone XLR Cable with Switchcraft connectors	C25E
