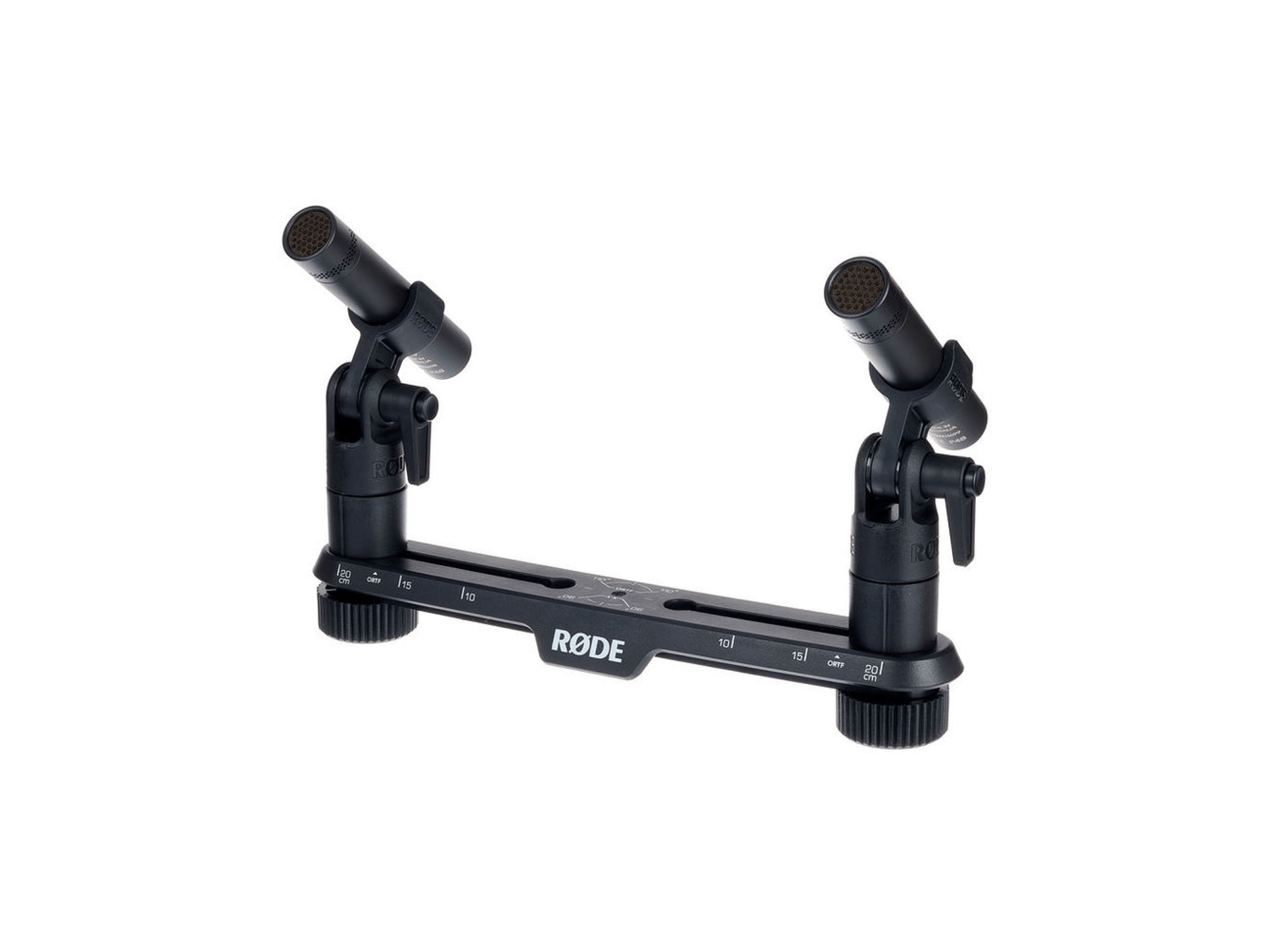

RODE TF-5

Apraksts

The TF-5 features the hallmark clarity and airiness of other RØDE small diaphragm mics, and adds to this a unique warmth of tone which is often lacking in smaller ‘pencil mics’ of this type, making the TF-5 uniquely versatile.Features

• Precision-paired small diaphragm cardioid condenser microphones
• Ultra-low noise
• Flat frequency response
• Tight cardioid directivity
• Warm, accurate sound
• Suitable for the most critical recording applications
• Designed in collaboration with Grammy® award winning classical producer and engineer, Tony Faulkner

TF-5 SpecificationsACOUSTIC & ELECTRICAL SPECIFICATION

Acoustic Principle	Externally biased condenser
Active Electronics	JFET impedance converter with bipolar output buffer
Polar Pattern	Cardioid
Frequency Range	20Hz – 20kHz
Frequency Response	30 Hz – 20 kHz ±3dB // 20 Hz – 20 kHz ±4dB
Output Impedance	63Ω
Signal to noise Ratio	80 dB
Equivalent Noise	14 dB SPL(A-weighted, as per IEC651)
Input SPL @ 1% THD	120 dB SPL (1kHz @ 1% THD, 600Ω load)
Sensitivity	-29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz)
Dynamic Range	112.6 dB (1kHz @ Max SPL)
Power Requirements	7mA @ 48V phantom power

MECHANICAL SPECIFICATION

Weight (g)	114g (single microphone)
Dimensions	Length: 98.7mm Diameter: 20mm

More Info: RODE TF-5
