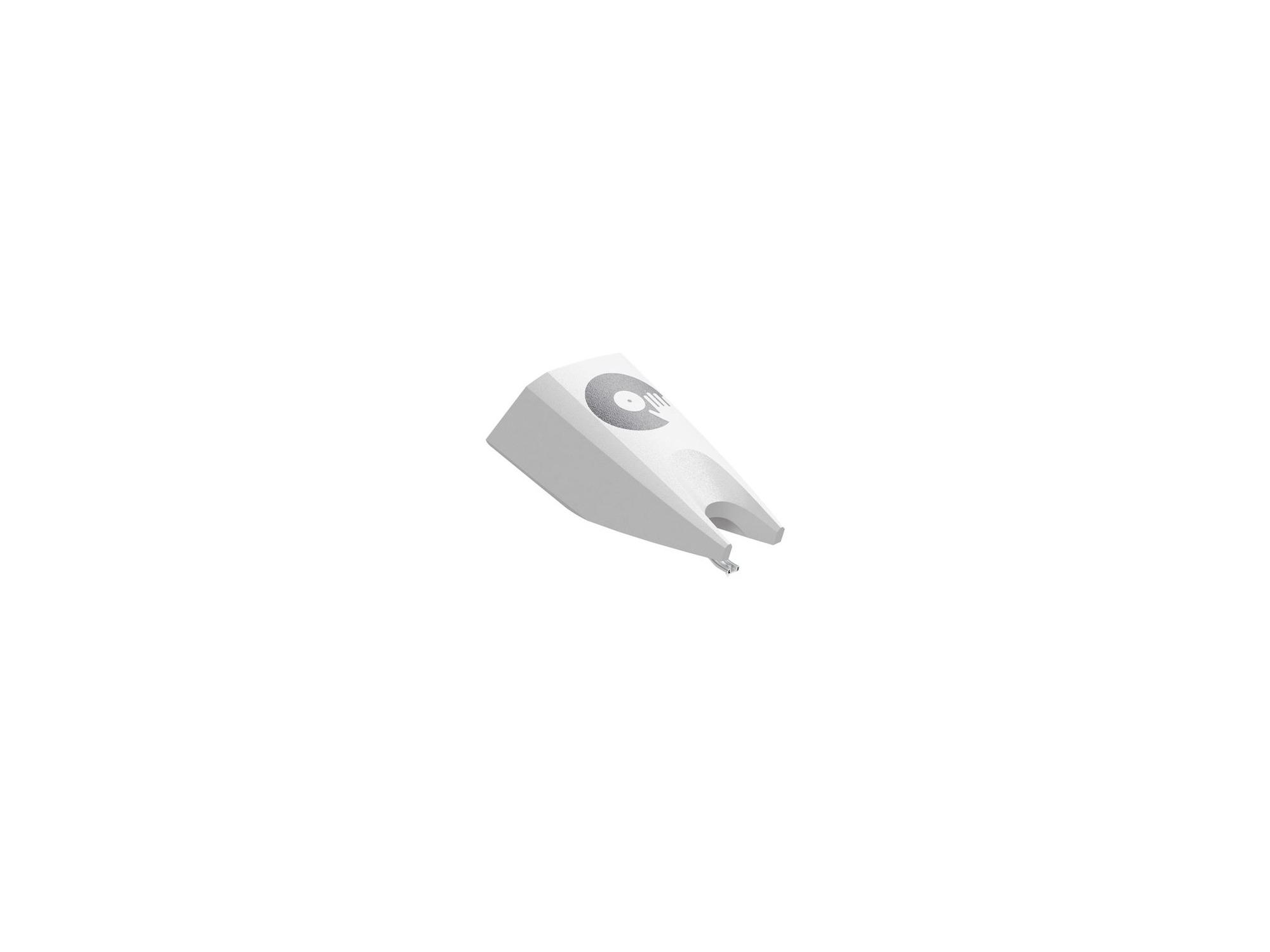

[:lv]Ortofon Concorde SCRATCH Mk2 Stylus[:]

Apraksts

[:lv]Output voltage at 1000Hz, 5cm/sec. – 10 mV
Channel balance at 1kHz – 1 dB
Channel separation at 1kHz – 22 dB
Channel separation at 15 kHz – 15 dB
Frequency range at -3dB – 20-18.000 Hz
Tracking ability at 315 Hz at recommmended tracking force – 120 μm
Compliance, dynamic lateral – 14 μm/m N
Stylus type – Spherical R 18 μm
Tracking force range – 3 – 5 g
Tracking force recommended – 4 g
Recommended exclusively for Concorde MkII SCRATCH
More info: Stylus SCRATCH[:]
