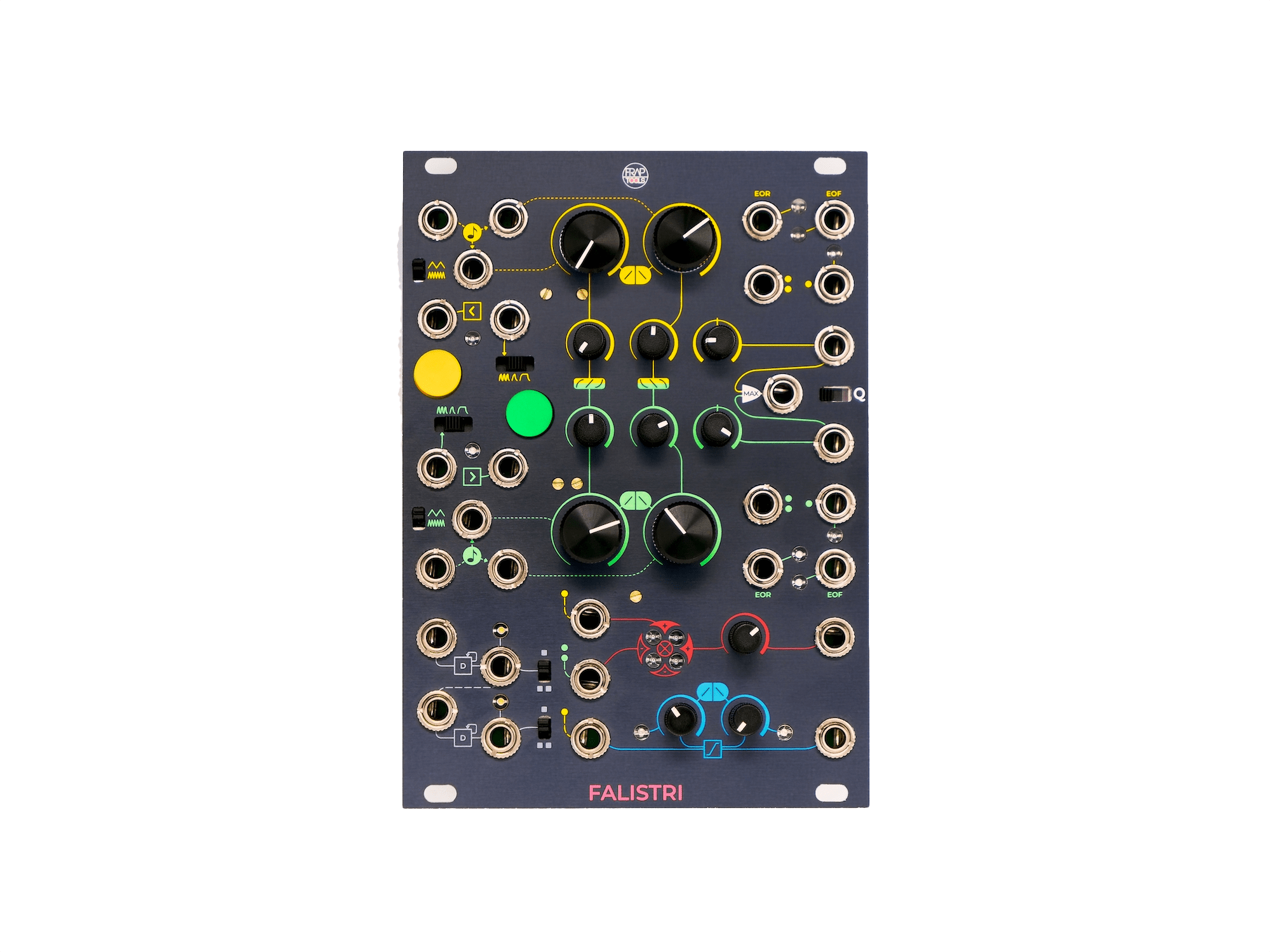

The FALISTRI is a fully analog multipurpose movement manager designed to generate and edit voltages to easily accomplish any patch.The module can be divided into two big parts: in the upper two-thirds of the panel take place two specular function generators, while the lower third is composed by a dual cascaded frequency divider, a linear slew limiter, and a four-quadrant multiplier.
- two generators as envelopes or oscillators
- independent shape per stage
- independent time from shape
- quadrature mode for both envelope or oscillator mode
- manual buttons for realtime performance and ease of interaction
- unipolar bipolar and attenuverted output
- EOR and EOF digital outputs
- two cascaded flip-flop for sub oscillators, clock dividers or more rhythmical combinations
- DC-coupled four quadrant multiplier usable for AM RM or as VCA
- slew limiter with separated rise and fall
- analog design
Size 18HPDepth 38mmPower Requirements
- 170 mA +12V idle
- 170 mA -12V idle
More Info: Frap Tools Falistri
