Apraksts

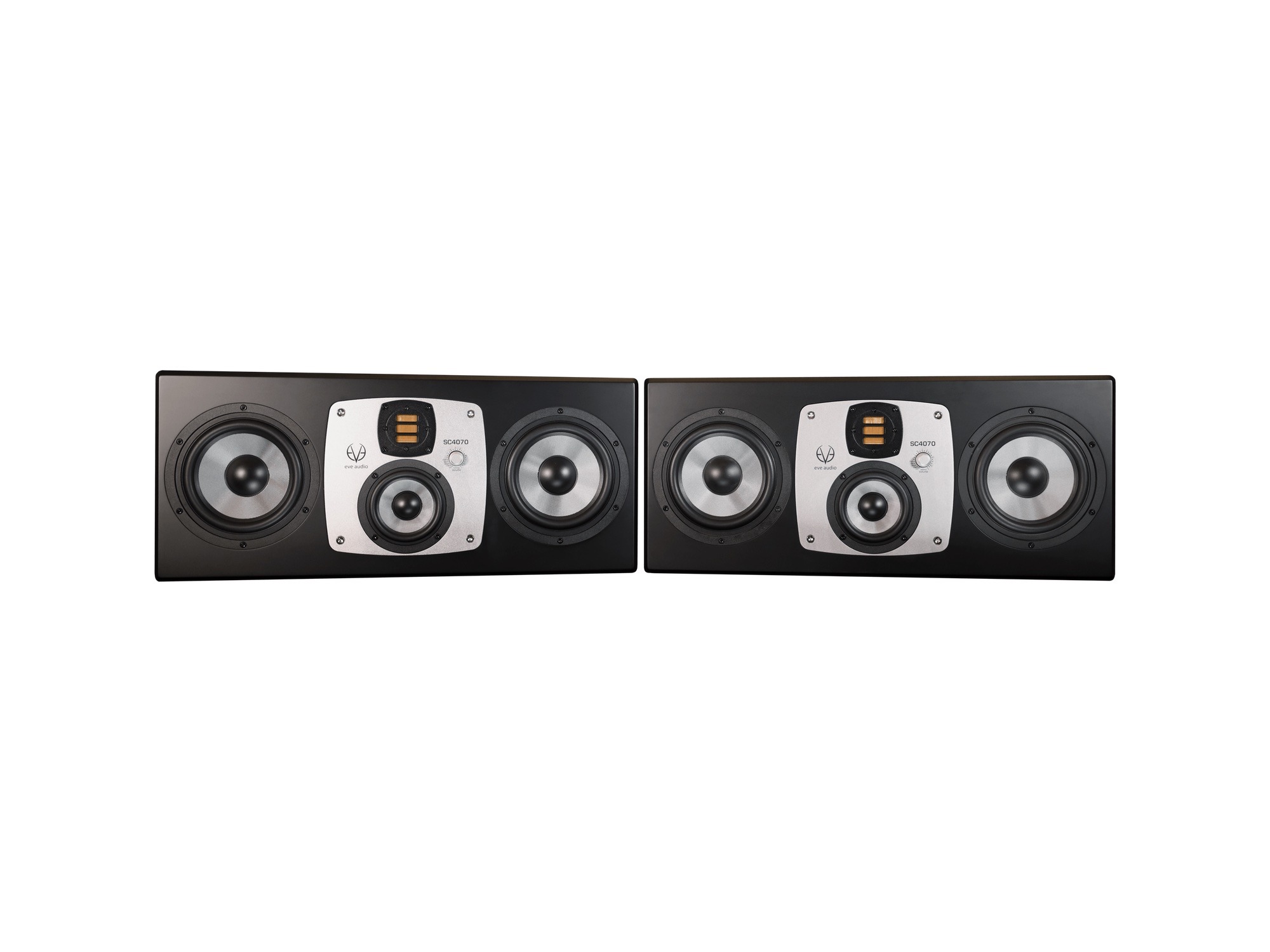

| Description | Midfield/Main Monitor |
|---|---|
| Dimensions (WxHxD) [mm] | 600 x 260 x 320 |
| Dimensions (WxHxD) [“] | 23.62 x 10.24 x 12.6 |
| Free-field frequency range (-3dB) | 32Hz – 25kHz |
| Tweeter | AMT RS3.1 |
| Midrange | 100mm/4″ |
| Woofer | 2 x 165mm/6.5″ |
| Cross-over frequency | 280Hz/3000Hz |
| Max SPL per pair | 126dBspl |
| Number of amplifiers | 4 |
| Output power (woofers) | 2 x 250W |
| Output power (mid-driver) | 250W |
| Output power (tweeter) | 250W |
| Protection limiter |  |
| Settings | |
| Volume | -inf. – +6dB |
| High-shelf filter (-5dB – +3dB) | > 3kHz |
| Mid EQ (-3dB – +3dB) | 1kHz |
| Desk filter boost (0dB – +3dB) | 80Hz |
| Desk filter cut (-5dB – 0dB) | 160Hz |
| Low-shelf filter (-5dB – +3dB) | < 300Hz |
| LED brightness setting | |
| Level-lock dip switch | |
| Filter-lock dip switch | |
| Input level dip switch | +7dBu/+22dBu |
| Connectors | |
| XLR in (impedance) | (10k) |
| RCA in (impedance) | (10k) |
| Power consumption | |
| Standby | < 1W |
| Full output | 500VA |
| Misc. | |
| Weight [kg/lb.] | 18 / 39.7 |
More info: SC4070
