Apraksts
- Mic Preamplifier with super low noise & stepped gain switching.
- Built in Direct Box
- ‘Colored’ 80Hz High pass filter emulates the warm low-frequency cut of vintage equalizers.
- Phase Switch to invert the audio signal 180 degrees.
- CompSat offers both a musical Compressor/Limiter and a unique tape-like saturation circuit
- Emphasis high-frequency emphasis system softens high-frequency ‘pile-ups’ and further the color of the Mike-E
- Mix Control allows the blending of the Compressed/Saturated signal with the clean unprocessed “Dry” signal
- Frequency Response: 3 Hz to 200 kHz on (No CompSat), 3Hz – 150Khz (w/ CompSat) Optional Transformer output is 6Hz-80kHz.
- Signal to Noise – 130 dB signal to Noise.at 40dB gain
- Maximum output is +28dBu
- Distortion Ranges between .0006% and 15% depending on mode and settings
- Transformer coupled Input, Active and Transformer Outputs available
- High quality audio caps used internally
- Input Impedance is 600 Ohms. Output impedance is less than 38 ohms
- Attack/Decay Ranges – .9 – 100mS attack. .15 – 1 Sec.

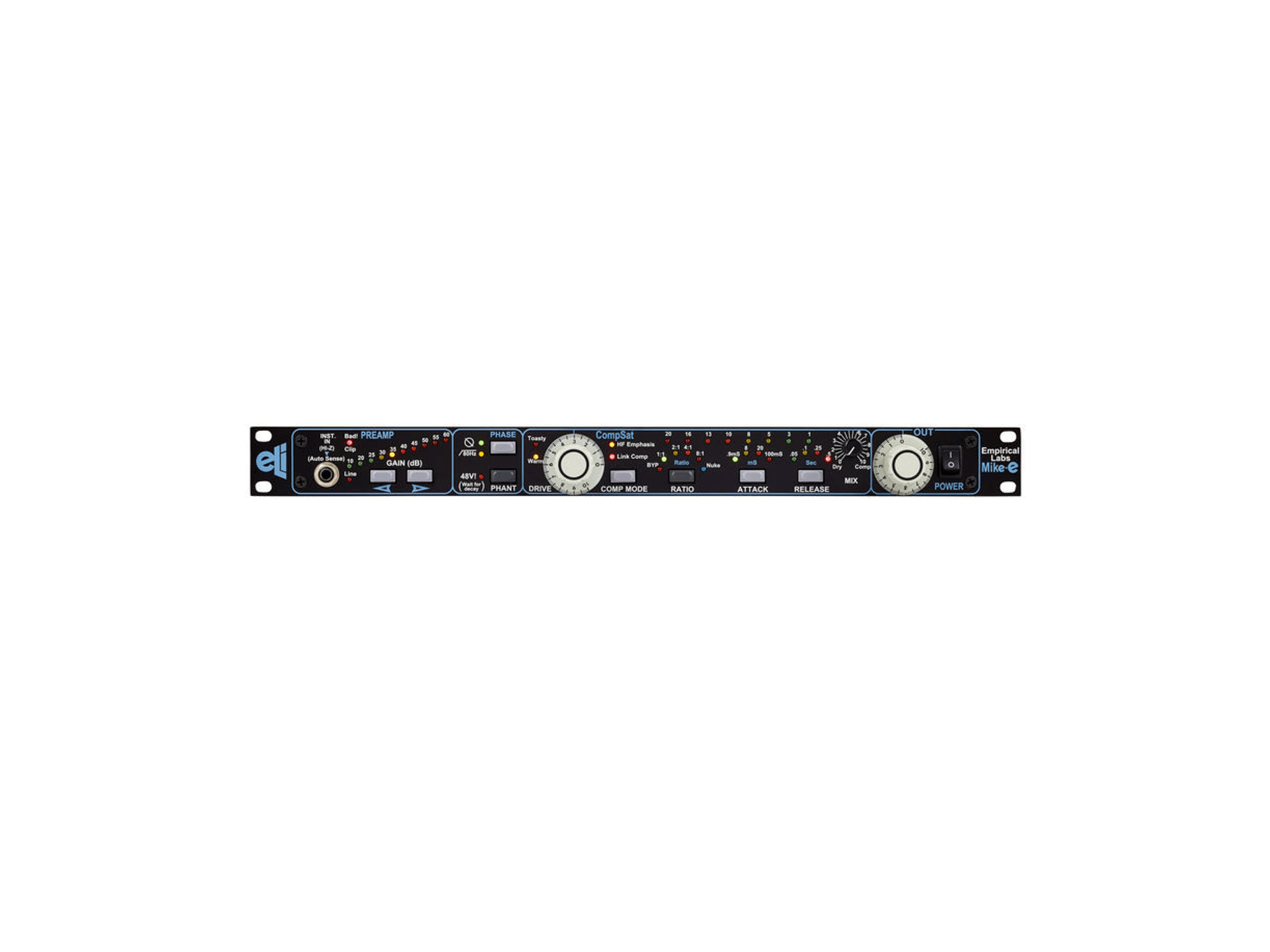

More Info: Empirical Labs EL9 Mike-e
