Apraksts
- Freq. Response is 3 Hz to 120 kHz (-3dB points).
- Dynamic Range – 115 dB from maximum output (.5%THD soft clipping) to minimum output. Transformerless noise floor typically – 93dBu.
- Distortion Ranges between .0035% and .01% depending on mode and settings.
- DC coupled Input and Outputs
- High quality audio caps used internally.
- Input Balanced, Output single ended but with balanced impedance.
- Pin 2 hot
- Input Impedance is 20k Ohm. Output impedance is less than 51 ohms.
- D-S Dynamics Time Constants – Attack time is less than 1mS. Release .04 sec, fixed internally.
- Power Consumption – 8 Watts max. 4 Watts Typical

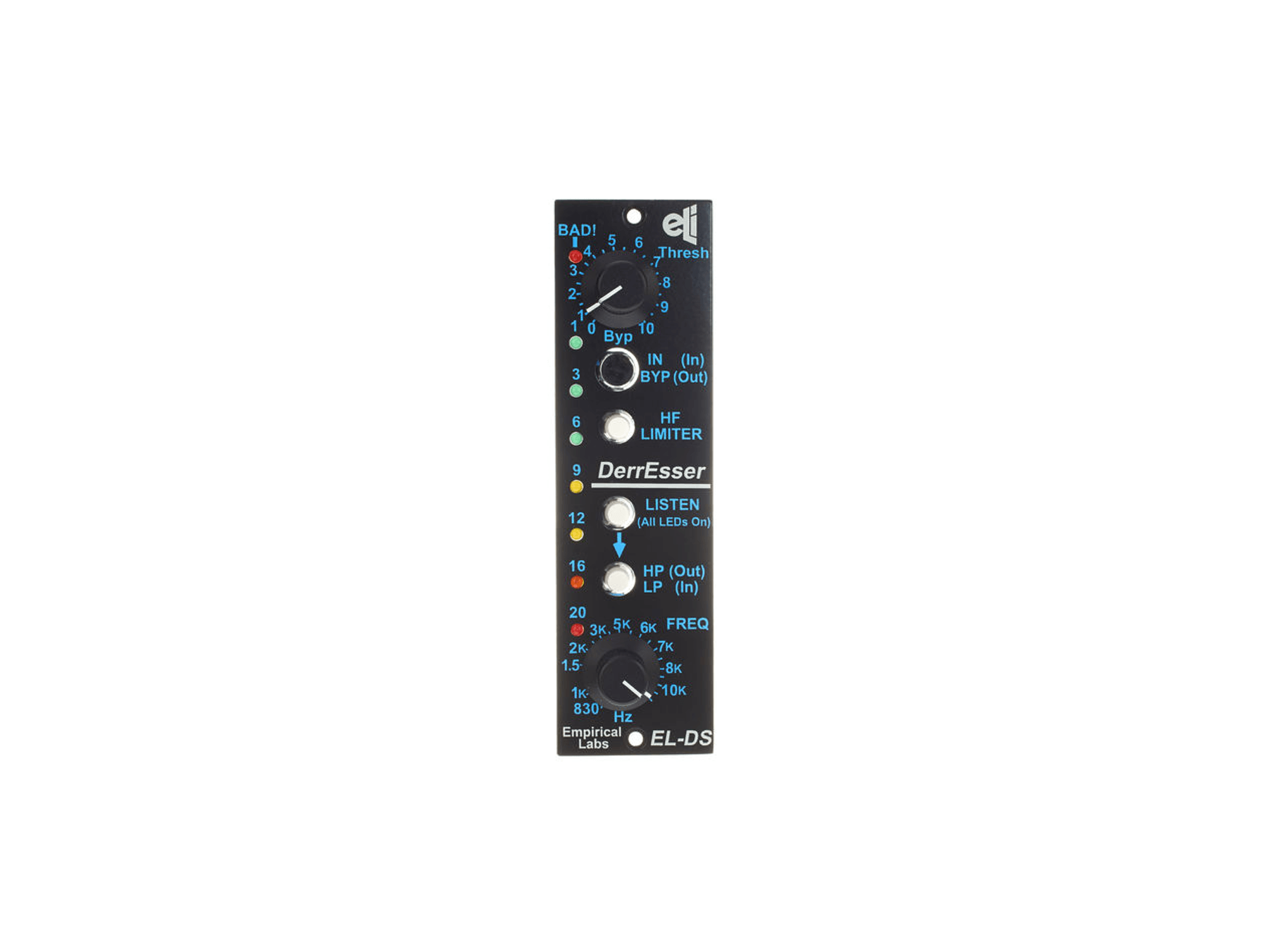

More Info: Empirical Labs EL-DS-V Derresser Vertical
