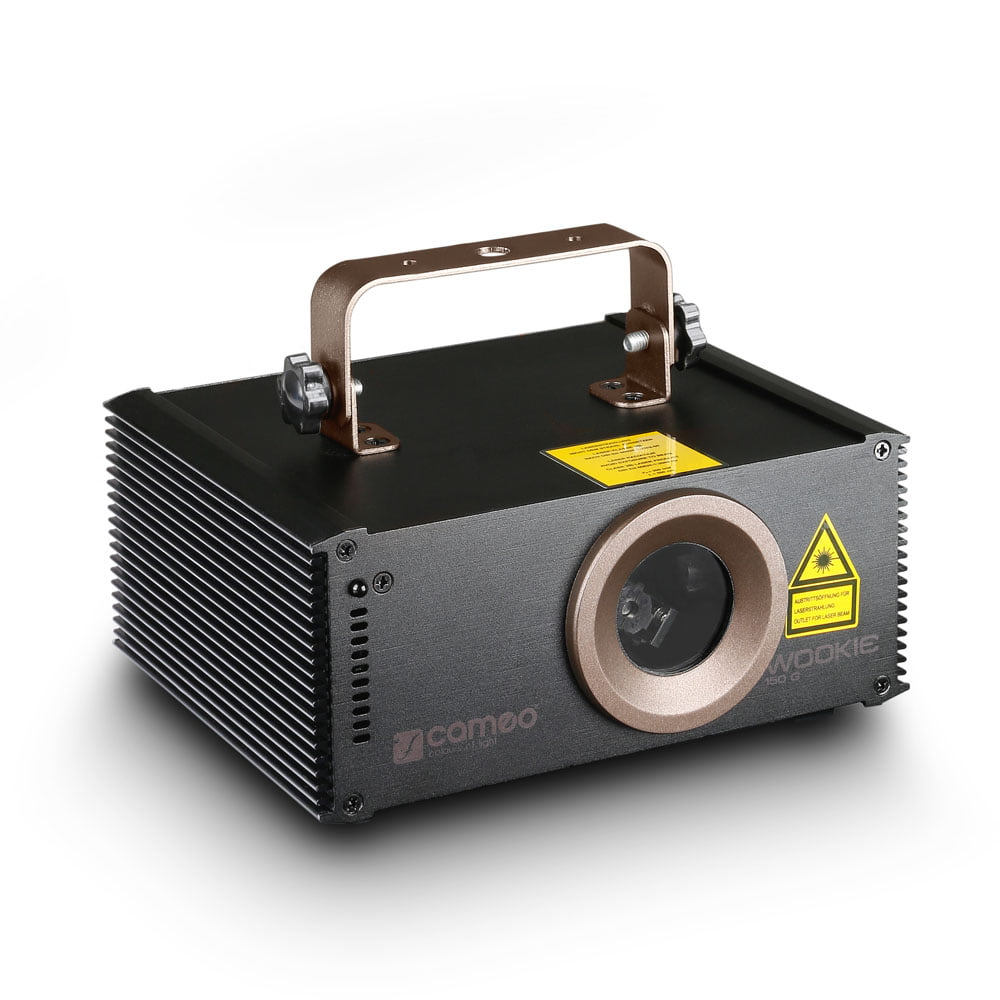

With an output of 150 mW the WOOKIE 150 G features a green DPSS laser with 3 mm beam diameter and no more than 1 mrad divergence.
The Wookie Series animation laser lights provide vibrant, highly visible animations with precision beams, 32 lively pattern presets and high speed 5 Kpps stepper motors with a 60° scan angle. They are controllable via DMX in 3-channel and 9-channel modes, the integrated microphone with adjustable sensitivity and capable of master, slave and standalone operation. Each Wookie laser light sports a compact, high quality aluminium enclosure with 3-pin DMX connectors, IEC mains inlet and adjustable mounting bracket. A key switch prevents unauthorized use, and the bright display with four function keys allows easy manual operation. The Wookie Series laser lights come with a convenient infrared remote control.
| Product type | Laser |
| Total power | 150 mW |
| Colour spectrum | green |
| Wavelength | 532 nm |
| Beam Data | approx. 3 mm / 1 mrad divergence |
| Laser sources | DPSS |
| Laser Class | 3B |
| Scanner | High speed stepper motors, 5 kpps |
| Max. scan angle | 60 ° |
| Operating modes | Auto programs, DMX 512 protocol, sound control |
| DMX input | XLR 3-pin male |
| DMX output | XLR 3-pin female |
| DMX mode | 3-channel, 9-channel |
| Controls | Enter, Mode, Value Down, Value Up |
| Operating voltage | 100 V AC – 240 V AC, 50 – 60 Hz |
| Power consumption | 50 W |
| Power connector | IEC power connector male |
| Housing material | metal |
| Cabinet colour | Black |
| Width | 180 mm |
| Height | 90 mm |
| Depth | 192 mm |
| Weight | 2 kg |
