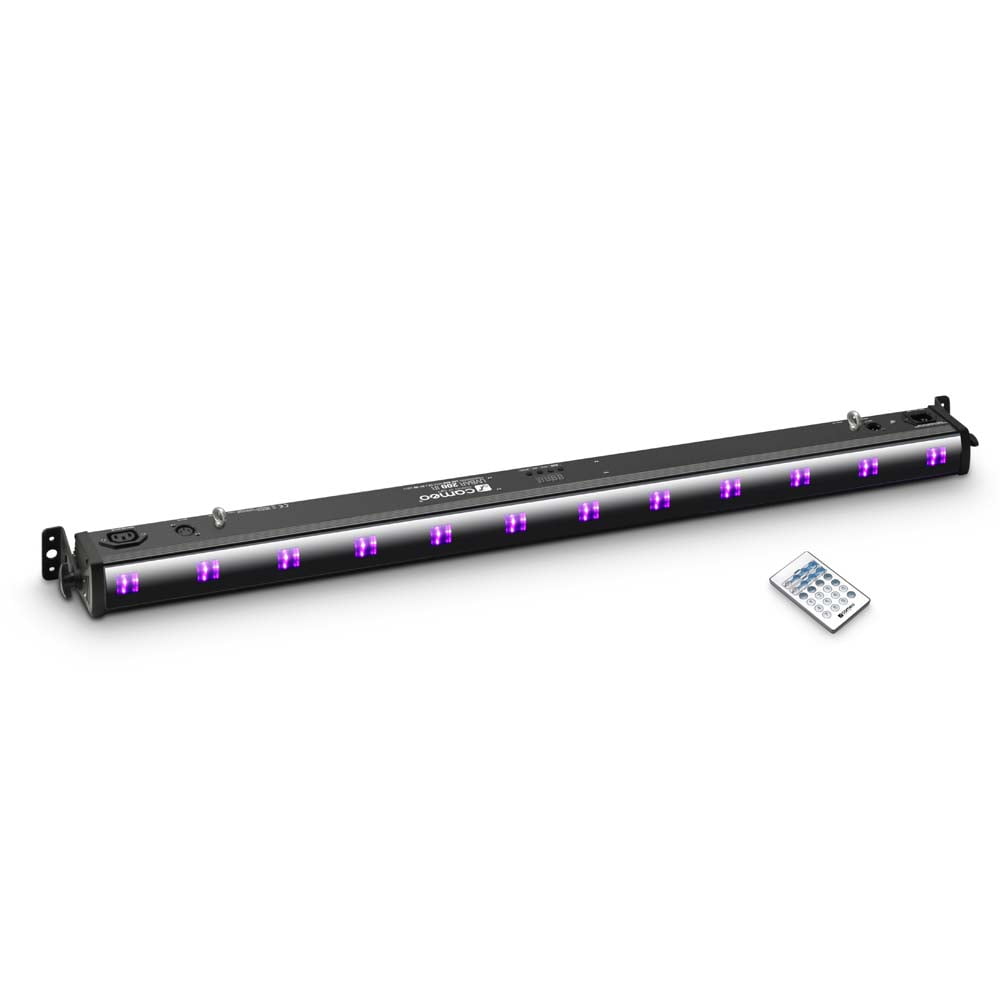

The Cameo UVBar 200 IR is a blacklight bar with 12 super bright 3W ultraviolet LEDs, 65° beam angle and convection cooling for noiseless operation.It features DMX control, standalone, master and slave modes with dimmer and strobe effects and a built-in microphone for sound activation. For manual operation the UVBar 200 comes with a convenient handheld infrared control.The rugged metal enclosure is equipped with 3-pin DMX and IEC mains inputs and outputs for easy daisy chaining and adjustable mounting angles.
| Product type | LED Bars |
| Type | Indoor |
| Colour spectrum | UV |
| Number of LEDs | 12 |
| LED type | 3 W UV |
| Dispersion | 65 ° |
| Refresh rate | 3000 Hz |
| DMX input | XLR 3-pin male |
| DMX output | XLR 3-pin female |
| DMX mode | 2-channel |
| DMX Functions | Dimmer, master dimmer, strobe |
| Standalone modes | master dimmer, sound control, strobe |
| Controls | Enter, Mode, Value Down, Value Up |
| Indicators | LED Display |
| Operating voltage | 100 V AC – 240 V AC, 50 – 60 Hz |
| Power consumption | 35 W |
| Power connector | IEC power connector female, IEC power connector male |
| Housing material | metal |
| Cooling | Convection |
| Cabinet colour | Black |
Dimensions without mounting bracket
| Width | 1022 mm |
| Height | 66 mm |
| Depth | 67 mm |
| Weight | 2,3 kg |
