Apraksts

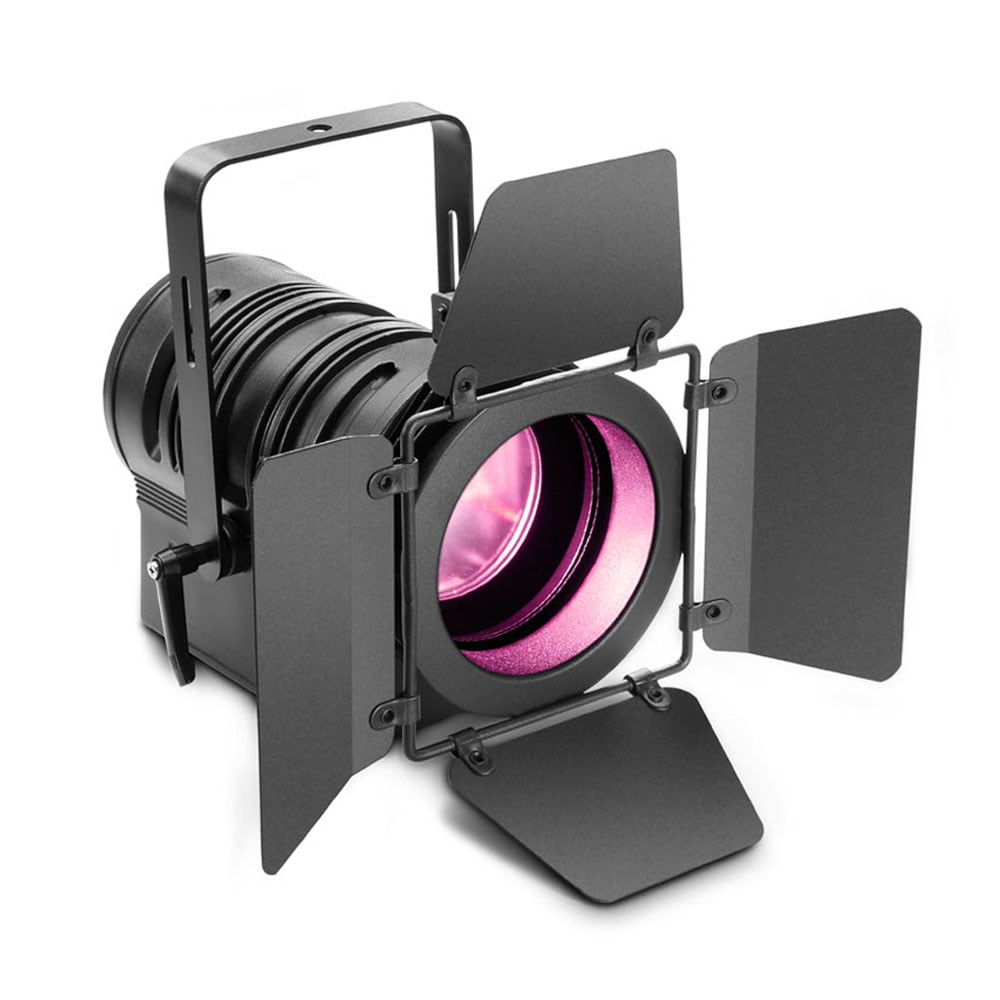

The Cameo TS 60 W WW is a versatile theatre spotlight with a plano-convex lens and manual zoom that allows continuous variable angle adjustment of its even, soft-border beam from 9° to as much as 41°. The 60-watt LED of the RDM-enabled spotlight with a colour temperature of 3,200 Kelvin achieves a powerful light intensity of 19,800 lux at a distance of one metre.
The spotlight’s DMX functions include a fast strobe, which can be adjusted from 1 to 20 Hz, and various dimmer curves. Sound control and integrated automated programmes allow it to be used as a standalone, while the refresh rate of 3,600 Hz ensures flicker-free operation. The TS 60 WW has rugged metal housing with temperature controlled fan , a display with four buttons for convenient configuration and 3-pin DMX connections. Delivery includes a rotatable flap to limit the light beam and a colour filter frame.
| Product type | LED PAR Lighting |
| Type | Indoor |
| Colour spectrum | RGBW |
| Number of LEDs | 1 |
| LED type | 60 W |
| Refresh rate | 3600 Hz |
| Dispersion | (Beam) 9° – 41° / (Field) 16° – 49 ° |
| DMX input | XLR 3-pin male |
| DMX output | XLR 3-pin female |
| Protocols | USITT DMX 512 protocol |
| DMX mode | 5-channel |
| DMX Functions | colour macro, CTO, Dimmer, RGBW, strobe |
| Wireless DMX | no |
| Strobe flash rate | 1–20 Hz |
| Standalone modes | Auto programs, slave mode, sound control, Static |
| Controls | Down, Enter, Mode, Up |
| Indicators | LC display |
| Operating voltage | 100 V AC – 240 V AC, 50 – 60 Hz |
| Power consumption | 65 W |
| Power connector | Power cord with safety plug (Type E / CEE 7/7) |
| Housing material | die cast metal |
| Cabinet colour | Black |
| Cooling | temperature-controlled fan |
| Operating Temperature | 0 – 40 °C |
| Illuminance | 19800lx @ 1m |
| Luminous flux | 910 lm |
| Width | 145 mm |
| Height | 205 mm |
| Depth | 240 mm |
| Weight | 3,6 kg |
| Accessories (included) | barndoor |
