Apraksts

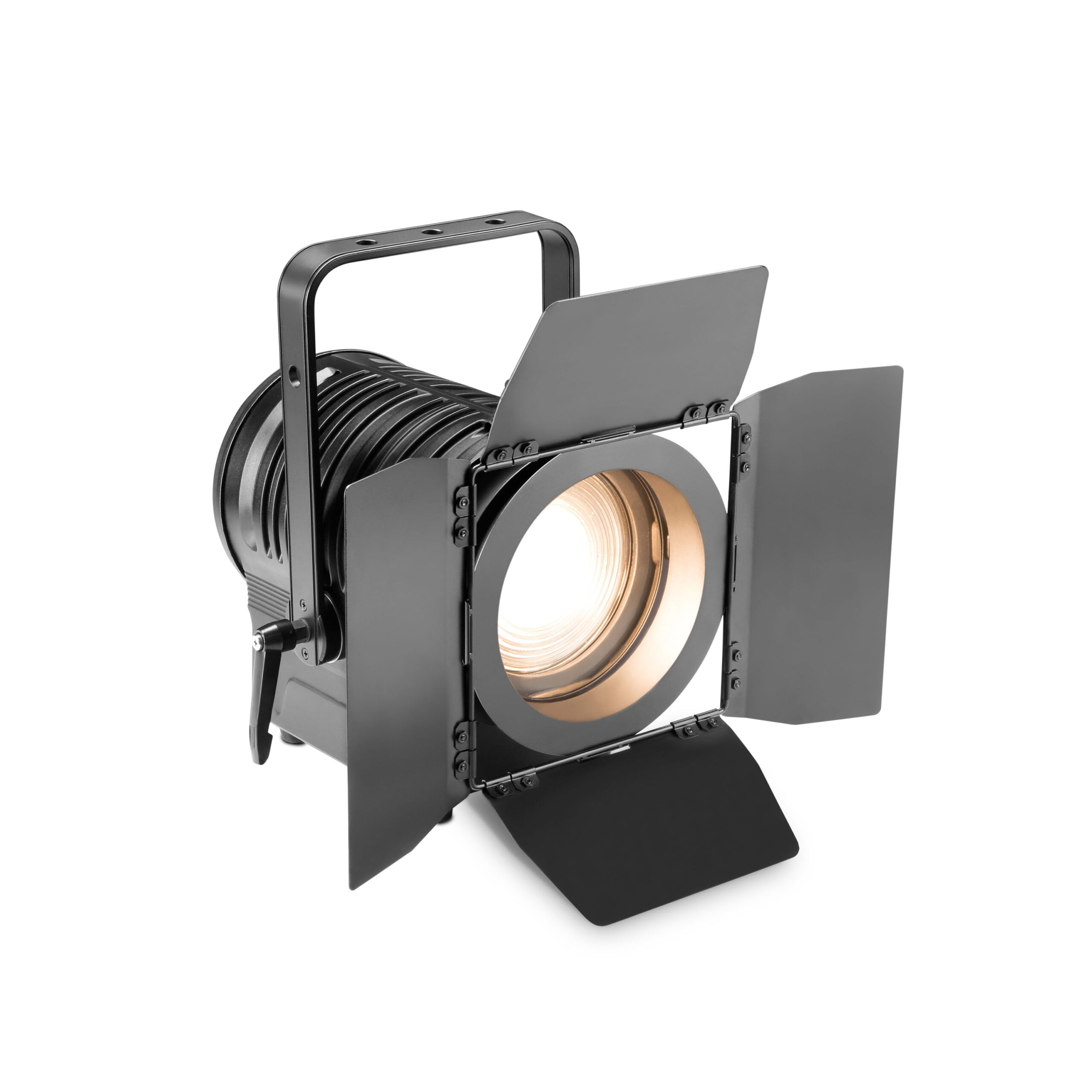

The Cameo TS 200 WW is a versatile theatre spotlight with Fresnel lens and manual zoom for easy spot-to-flood focus adjustment. Delivering a soft-edged beam with continuously variable 14° to 38° angle, the RDM-enabled fixture is powered by a single 180 watt warm white LED. It sports a colour temperature of 3,100 K, an illuminance of 67,500 lux at 1 metre distance and shows colours faithfully and realistically with a super high CRI of 96.
The spotlight’s DMX functions include a high-speed strobe with adjustable flash rate from 1 – 20 Hz and a choice of dimming curves with 16-bit resolution. Selectable refresh rates up to 25 kHz ensure flicker-free performance. The TS 200 WW comes in a tough metal housing with temperature controlled fan. It provides a 4-button display for easy configuration, 3 and 5-pin DMX and Power Twist inputs and outputs for convenient daisy-chaining. The package includes a beam-shaping rotating barn door and colour filter frame.
| Product type | LED PAR Lighting |
| Type | Theater Spot |
| Colour spectrum | warm white |
| Number of LEDs | 1 |
| Colour temperature | 3100 K |
| CRI | 97 |
| LED type | Warm White 180 W |
| Refresh rate | 650 Hz; 1530 Hz; 3600 Hz; 25 k Hz |
| Dispersion | 14 – 38 ° |
| DMX input | XLR 3-pin male, XLR 5-pin male |
| DMX output | XLR 3-pin female, XLR 5-pin female |
| Modes of operation | DMX 512, Stand Alone, Master/Slave |
| DMX mode | 1-channel, 3-channel, 5-channel |
| DMX Functions | 16-Bit Dimmer, Device Settings, Dimmer Curve, strobe |
| Strobe flash rate | 1 Hz – 20 Hz |
| Standalone modes | Dimmer |
| Controls | Down, Enter, Mode, Up |
| Indicators | LC display |
| Operating voltage | 100 V AC – 240 V AC, 50 – 60 Hz |
| Power consumption | 200 W |
| Power connector | Blue and White Power Twist |
| Housing material | die cast metal |
| Cabinet colour | Black |
| Cooling | temperature-controlled fan |
| Operating Temperature | 0 – 40 °C |
| Illuminance | 67500 lx @ 1 m |
| Luminous flux | 6600 lm |
| Width | 320 mm |
| Height | 370 mm |
| Depth | 310 mm |
| Weight | 7,4 kg |
| Accessories (included) | barndoor, Color Filter Frame |
