Apraksts

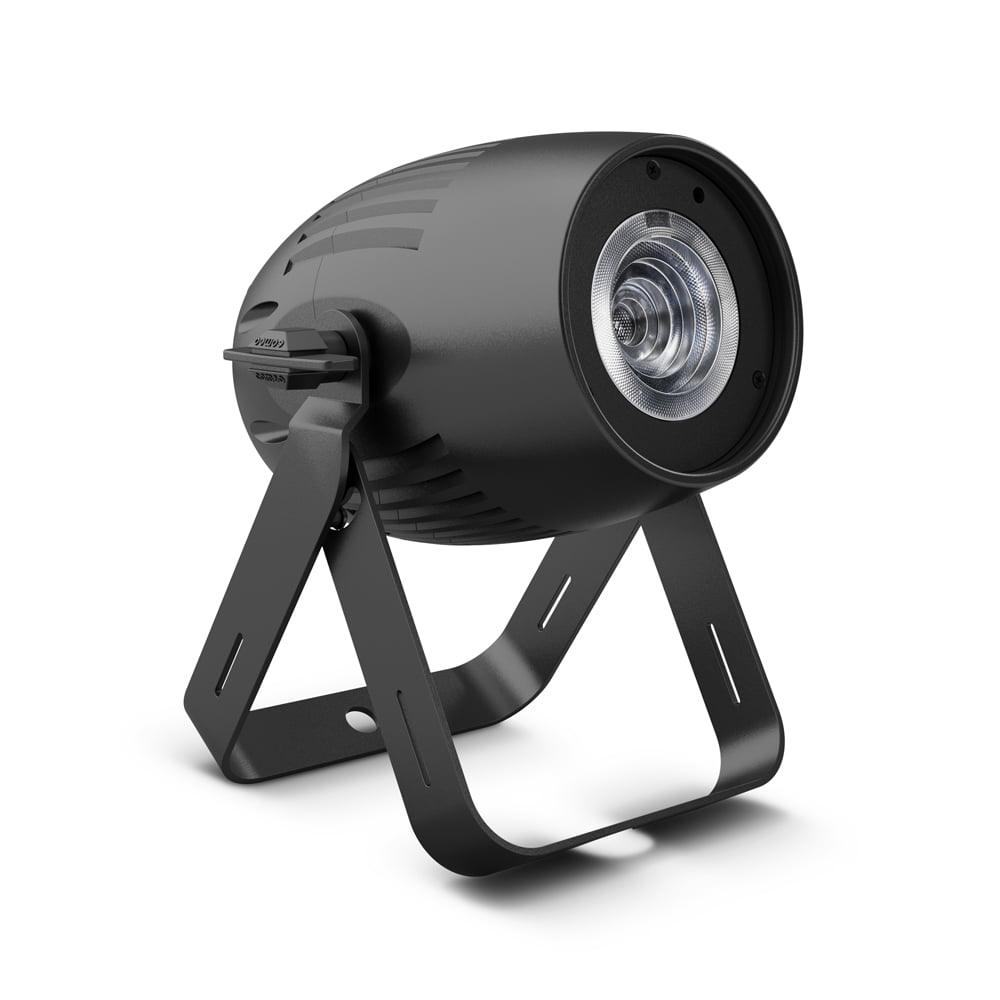

This compact Cameo Q-Spot is equipped with a powerful 40 watt cold white LED with colour temperature of 6500° Kelvin. The RDM enabled PAR light sports a custom lens for a tightly focused 4.5° beam spread and comes with two additional lenses offering versatility with a choice of 10° and 25° angles. Using 16-bit technology, the fixture provides ultra smooth dimming with selectable curves and response. Highly efficient convection cooling ensures silent operation, and the 3,600 Hz refresh rate and flicker-free performance make it ideal for motion picture and TV applications. .
The white light Q-Spot 40 features 3-channel DMX control, sound activation and master, slave and standalone capability. A convenient infrared remote control unit is available as accessory. The spotlight features a high-speed strobe function and a 4- button OLED display for easy configuration. The rugged all-metal housing provides 3-pin DMX inputs and outputs plus blue and grey Power Twist connectors for trouble-free daisy-chaining and power linking. The Q-Spot 40 CW is available with a black (item no. CLQS40CW) or white housing (item no. CLQS40CWWH).
| Product type | LED PAR Lighting |
| Type | Indoor |
| Colour spectrum | cold white |
| Number of LEDs | 1 |
| Colour temperature | 6500 K |
| Average LED lifetime | 50,000 h |
| LED type | 40 W |
| Refresh rate | 3600 Hz |
| Dispersion | 4.5°, 10°, 15 ° |
| DMX input | XLR 3-pin male |
| DMX output | XLR 3-pin female |
| RDM | Yes |
| Protocols | USITT DMX-512 |
| DMX mode | 3-channel |
| DMX Functions | master dimmer, sound control, strobe |
| Wireless DMX | no |
| Strobe flash rate | 1 – 20 Hz |
| Standalone modes | Master / Slave mode, sound control |
| Controls | Enter, Mode, Value Down, Value Up |
| Indicators | OLED Display |
| Operating voltage | 100 V AC – 240 V AC, 50 – 60 Hz |
| Power consumption | 55 W |
| How many devices can be connected (110 V) | 5 |
| How many devices can be connected (240 V) | 5 |
| Power connector | Blue Power Twist, male |
| Power supply connection | Grey Power Twist, female |
| Housing material | metal |
| Cabinet colour | Black |
| Protection class IP | IP20 |
| Cooling | Convection |
| Illuminance | 145000lx @ 1m |
| Luminous flux | 1829 lm |
Dimensions without mounting bracket
| Width | 151 mm |
| Height | 130 mm |
| Length | 220 mm |
| Weight | 2,75 kg |
