Apraksts

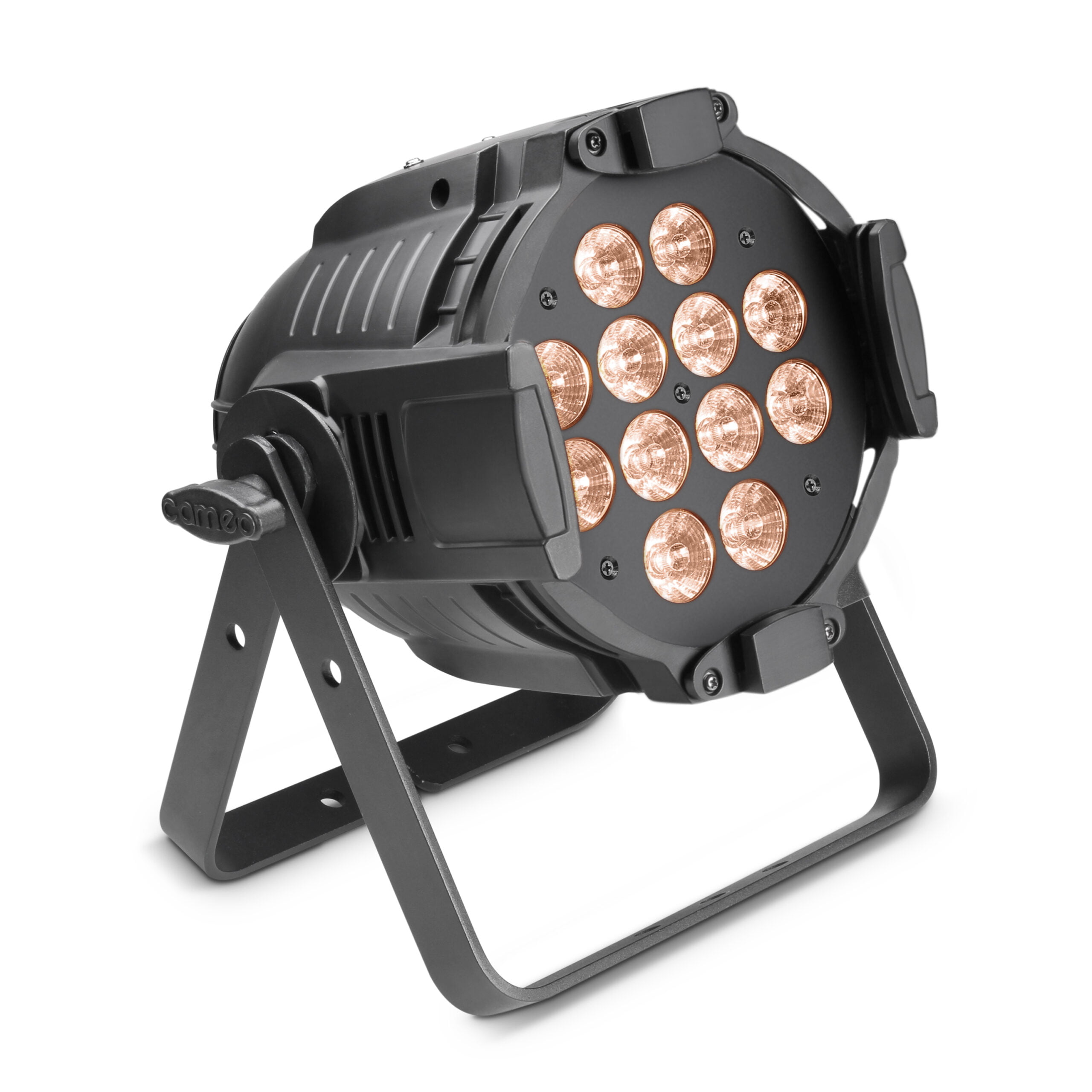

Featuring twelve 10 watt 3-in-1 cool white, warm white and amber Tri-LEDs, the Cameo STUDIO PAR DTW permits full white temperature control from warm Tungsten white to ultra bright cool white. The professional PAR light features an 18° beam angle and Dim-to-Warm technology to emulate the smooth dimming of halogen lamps. A temperature controlled fan and the 3,000 Hz refresh rate ensure cool and flicker-free operation.
The STUDIO PAR DTW is RDM enabled and provides 7 modes of DMX control plus sound activation. It includes a selection of 16-bit dimming curves with adjustable response, a high-speed strobe and macro functions. A 4-button display enables easy configuration. The rugged metal housing features 3-pin DMX and Neutrik powerCON inputs and outputs that enable convenient daisy chaining. The PAR light comes with a universal mounting bracket and Neutrik power cord.
| Product type | LED PAR Lighting |
| Type | Indoor, Studio PAR 64 |
| Colour spectrum | Amber, cold white, warm white |
| Number of LEDs | 12 |
| LED type | 10 W (ca. 50000 operating hours) |
| Refresh rate | 3000 Hz |
| Dispersion | 18° Beam, 34° Beam Field (without Diffusor) ° |
| Lens | PE |
| DMX input | XLR 3-pin male |
| DMX output | XLR 3-pin female |
| DMX mode | 13-channel, 1-channel, 2-channel, 3-channel CCT, 3-channel DIR, 3-channel Sound To Light, 9-channel |
| DMX Functions | Color Temperature, colour macro, Device Settings, Dimmer, Sound to Light, Strobe (incl. Random) |
| Standalone modes | Master / Slave mode, Static |
| Controls | Enter, Mode, Value Down, Value Up |
| Indicators | LC display |
| Operating voltage | 100 V AC – 240 V AC, 50 – 60 Hz |
| Power consumption | 130 W |
| Power connector | Neutrik powerCON IN / OUT |
| Housing material | metal |
| Cabinet colour | Black |
| Protection class IP | 20 |
| Cooling | temperature-controlled fan |
| Luminous flux | 3680 lm |
| Efficiency | 28 lm/W |
| Colour temperature | 1600 – 6800 K |
| Operating Temperature | -15 – 45 °C |
Dimensions including Mounting Bracket
| Width | 220 mm |
| Height | 230 mm |
| Length | 255 mm |
| Weight | 4,9 kg |
| Accessories (included) | Neutrik Power Cable |
