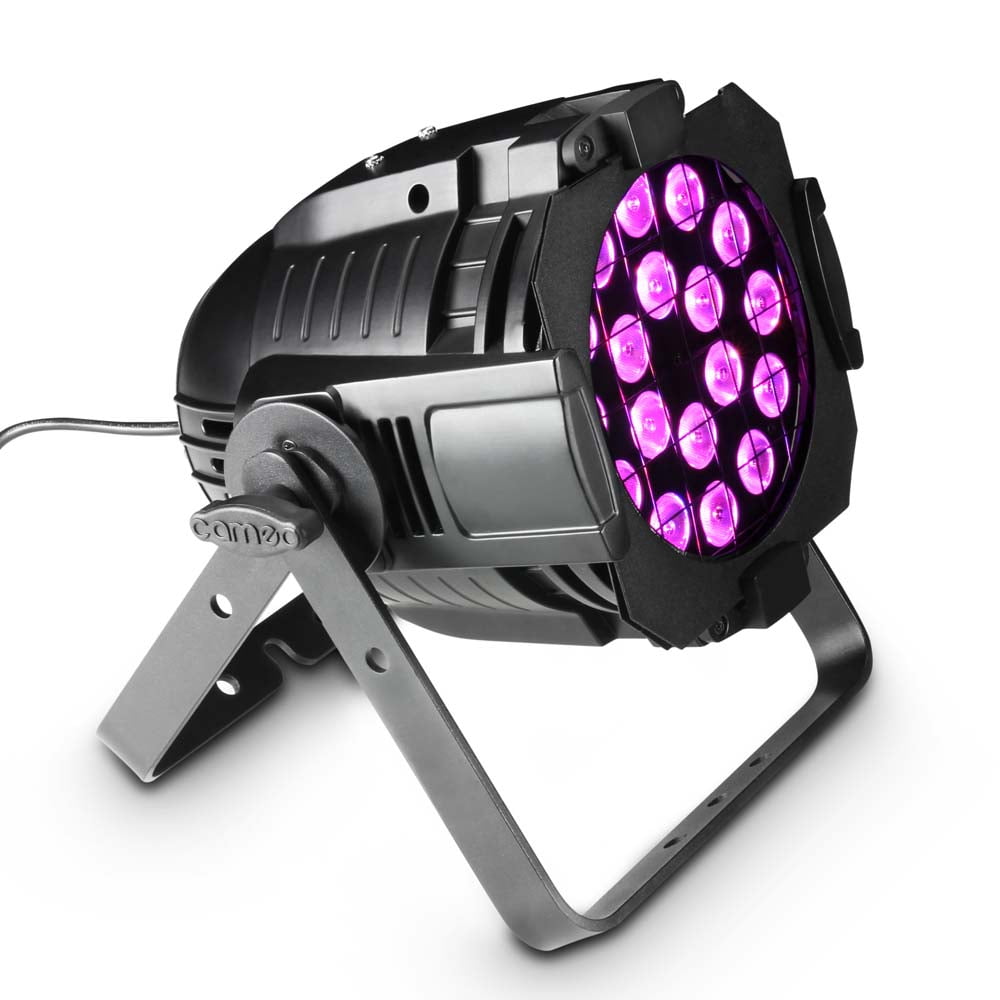

The Cameo CLPST64RGBAQ8W is a professional Studio-PAR64 projector with a 25° dispersion angle in a classic black metal housing. 18 energy-efficient high-performance 8 Watt Quad LEDs in the RGBA-system (RGB additive colour system plus Bernstein- LEDs) for a natural colour mix with a high light output, the extremely high refresh rate of 5,000 Hz for flicker-free operation and therefore also ideal for TV-production.
The CLPST64RGBAQ8W can be controlled in the DMX-modes with 2-channel, 3-channel 1, 3-channel 2, 4-channel and 7-channel and be used as a master, slave or stand-alone. The built-in microphone allows an external sound control. The DMX input and output is done via 3-pin XLR-connectors; the operation of the Studio-PAR64 is done using buttons to select Mode, Enter, Up, Down, and a bright LCD display.
A double bracket with non-slip locking screws enables it to be used as a ground projector or to be mounted on trusses, walls and ceilings. The Cameo CLPST64RGBAQ8W is suitable for all universal mains voltages from 110 to 250 volts.
| Product type | LED PAR Lighting |
| Type | Indoor |
| Colour spectrum | RGBA |
| Number of LEDs | 18 |
| LED type | 8 W QUAD Colour |
| Refresh rate | 5000 Hz |
| Dispersion | 25 ° |
| DMX input | XLR 3-pin male |
| DMX output | XLR 3-pin female |
| DMX mode | 2-channel, 3-channel 1, 3-channel 2, 4-channel, 7-channel |
| DMX Functions | colour fade, colour jump, master dimmer, RGBA, sound control, strobe |
| Standalone modes | colour fade, colour jump, colour macro, slave mode, sound control, static colour |
| Controls | Enter, Mode, Value Down, Value Up |
| Indicators | LED Display |
| Operating voltage | 110 V AC – 250 V AC |
| Power consumption | 170 W |
| Power connector | Power cord with safety plug (Type E / CEE 7/7) |
| Housing material | metal |
| Cabinet colour | Black |
| Illuminance | 12000lx (+/- 10%) |
Dimensions without mounting bracket
| Width | 230 mm |
| Height | 220 mm |
| Length | 255 mm |
| Weight | 4,9 kg |
