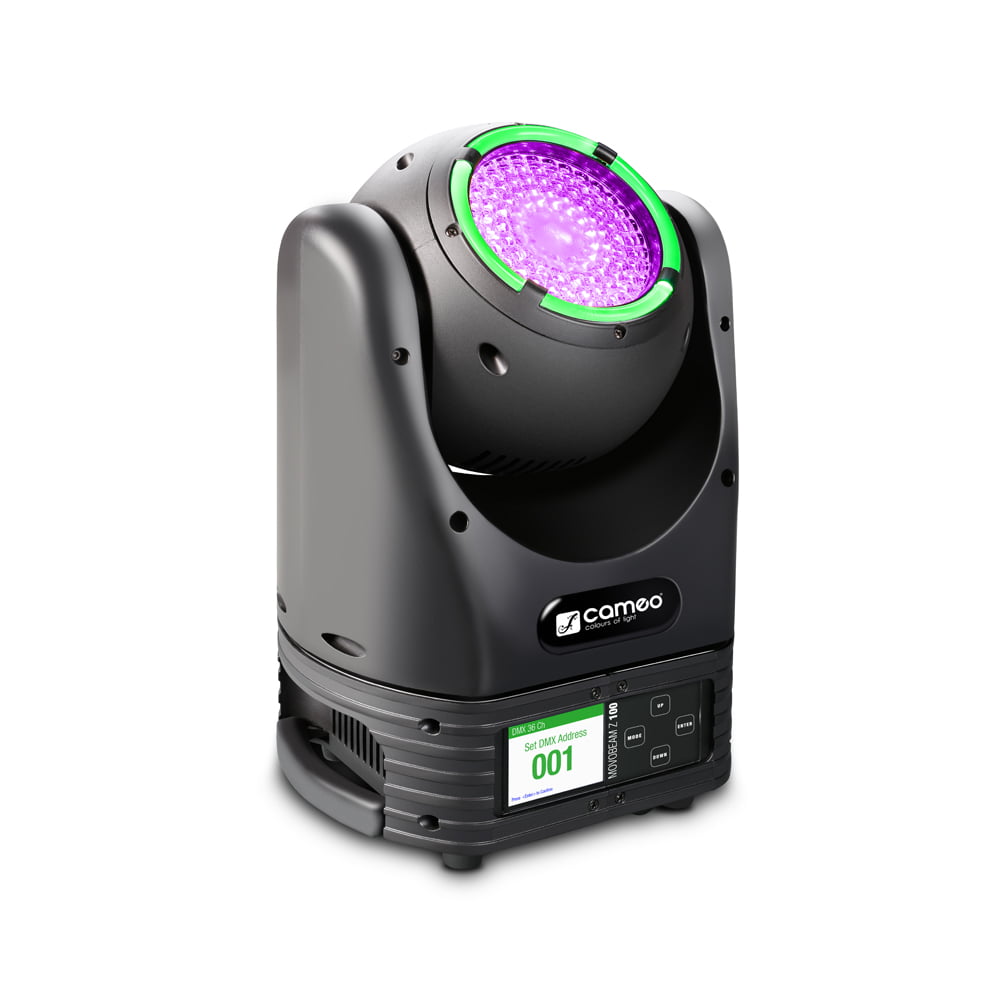

Taking the success of the MOVO®Beam 100 one step further, the Movo® Beam Z 100 is an ultra-fast moving head featuring a powerful motor zoom. With a zoom range of 4 to 30 degrees, it delivers tightly focussed beams, beatiful wash and amazing zoom effects. A central high-performance 60 watt OSRAM LED with a 50,000 hour lifespan produces rich RGBW mixes with saturated primary colours, subtle pastel hues and natural shades of white. It is surrounded by an RGB LED ring with 4 individually controllable segments that enable a spectacular lighting performance.
Driven by two high-speed, high-torque motors the MOVO® BEAM Z 100 provides endless pan and tilt rotation with smooth precision. It sports a bright 2.5″ TFT display with touch sensitive buttons for convenient configuration, 3 modes of DMX control and spectacular automated modes. Seamless dimming with 4 selectable curves and a rapid strobe add to a brilliant and exciting performance.
The MOVO® BEAM Z 100’s compact ABS and metal housing features temperature controlled fan cooling to ensure reliable operation and extended LED life. It comes with an omega bracket for a variety of mounting options.
| Product type | LED Moving Lights |
| Type | LED Moving Effects |
| Colour spectrum | RGBW |
| Number of LEDs | 1 |
| LED type | 60W OSRAM (approx. 50.000 operating hours) |
| Refresh rate | 1000 Hz |
| Dispersion | 4 – 30 ° |
| DMX input | XLR 3-pin male |
| DMX output | XLR 3-pin female |
| DMX mode | 16-channel, 36-channel, 5-channel |
| DMX Functions | Auto programs, colour fade, colour jump, colour macro, Colour Ring Macro, Colour Ring Macro Speed, Dimmer Colour Ring, Dimmer Curve, Dimmer Fine, PAN, PAN UNLIMITED ROTATION, Pan/Tilt fine, Pan/Tilt Macros, Pan/Tilt Speed, RGB Ring 1-4, RGBW, Strobe Colour Ring, Stroboscope, TILT, TILT UNLIMITED ROTATION, Zoom |
| PAN movement | unlimited |
| TILT movement | unlimited |
| Standalone modes | Auto programs, Static Mode |
| Controls | Enter, Mode, Value Down, Value Up |
| Indicators | 2,5” TFT Display |
| Operating voltage | 100 V AC – 240 V AC, 50 – 60 Hz |
| Power consumption | 140 W |
| Power connector | Blue and white power I/O |
| Housing material | ABS plastic, metal |
| Cabinet colour | Black |
| Cooling | fan |
| Illuminance | 8500lx @ 3m |
| Luminous flux | 1220 lm |
| Width | 210 mm |
| Height | 299 mm |
| Depth | 210 mm |
| Weight | 6,5 kg |
