Apraksts

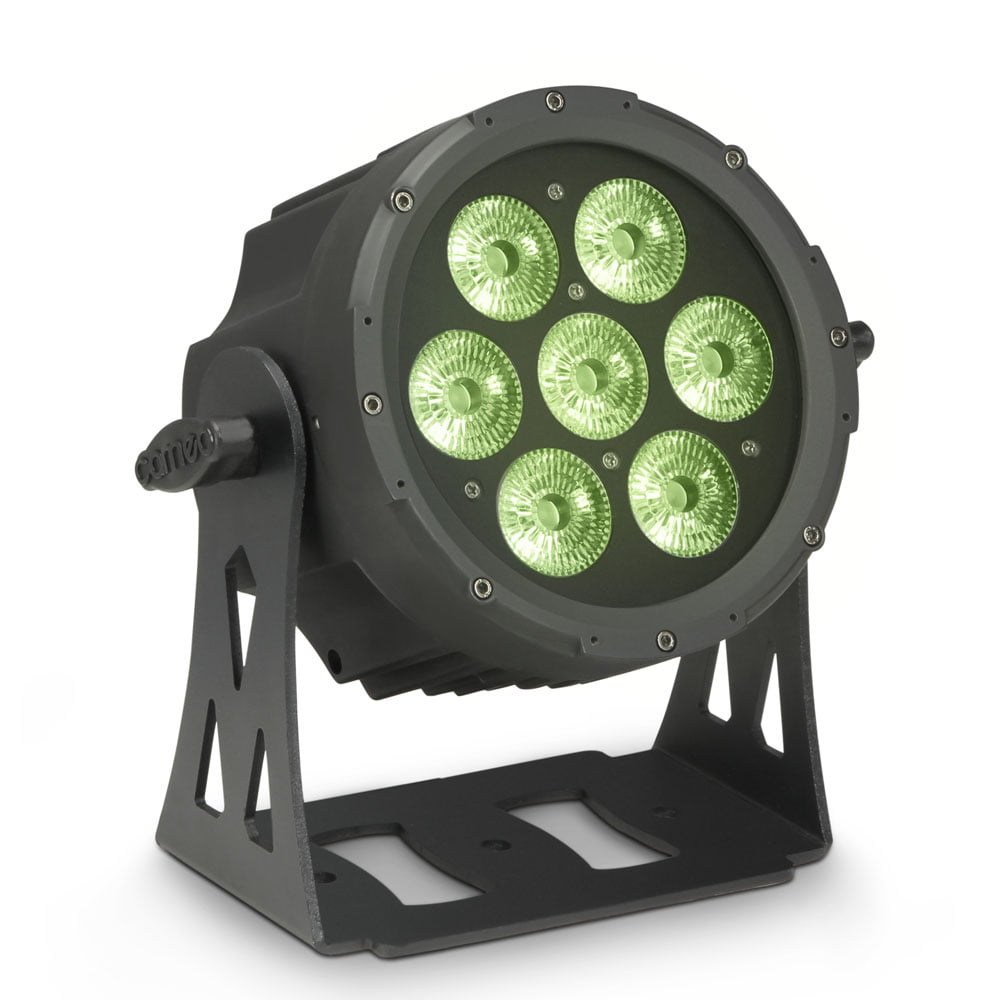

With only 130 mm depth, the compact Cameo FLAT PRO 7 XS is ideal when space is limited. The slim LED PAR can features 7 super bright 8 watt high performance LEDs for rich, flicker free RGBW colour mixing with temperature correction, a 3,600 Hz refresh rate and convection cooling for noiseless operation. Beam width is 20°.
Sporting 6 DMX modes as well as standalone, master and slave modes, a built-in microphone for sound activation plus strobe, colour fade and dimmer functions, the thoroughly professional FLAT PRO 7 XS is RDM enabled for bi-directional communication.
The black metal enclosure incorporates a backlit 4-button display, both 3-pin and 5-pin DMX inputs and outputs as well as Neutrik powerCON sockets for 100 – 240 V AC mains and easy daisy-chaining. The Cameo FLAT PRO 7 XS fixture’s multifunctional bracket provides a wide variety of mounting options.
| Product type | LED PAR Lighting |
| Type | Indoor |
| Colour spectrum | RGBW |
| Number of LEDs | 7 |
| LED type | 8 W |
| Refresh rate | 3600 Hz |
| Dispersion | 20 ° |
| DMX input | XLR 3-pin male, XLR 5-pin male |
| DMX output | XLR 3-pin female, XLR 5-pin female |
| DMX mode | 10-channel, 2-channel, 3-channel 1, 3-channel 2, 4-channel, 9-channel |
| DMX Functions | colour jump, colour macro, master dimmer, RGBW, sound control, strobe |
| Standalone modes | colour fade, colour jump, colour macro, slave mode, sound control, static colour |
| Controls | Enter, Mode, Value Down, Value Up |
| Indicators | backlit LCD |
| Operating voltage | 100 V AC – 240 V AC, 50 – 60 Hz |
| Power consumption | 75 W |
| Power connector | Neutrik PowerCon |
| Housing material | metal |
| Cabinet colour | Black |
| Cooling | Convection |
| Illuminance | 17000lx @ 1m |
Dimensions without mounting bracket
| Width | 180 mm |
| Height | 180 mm |
| Length | 130 mm |
| Weight | 3,5 kg |
