Apraksts

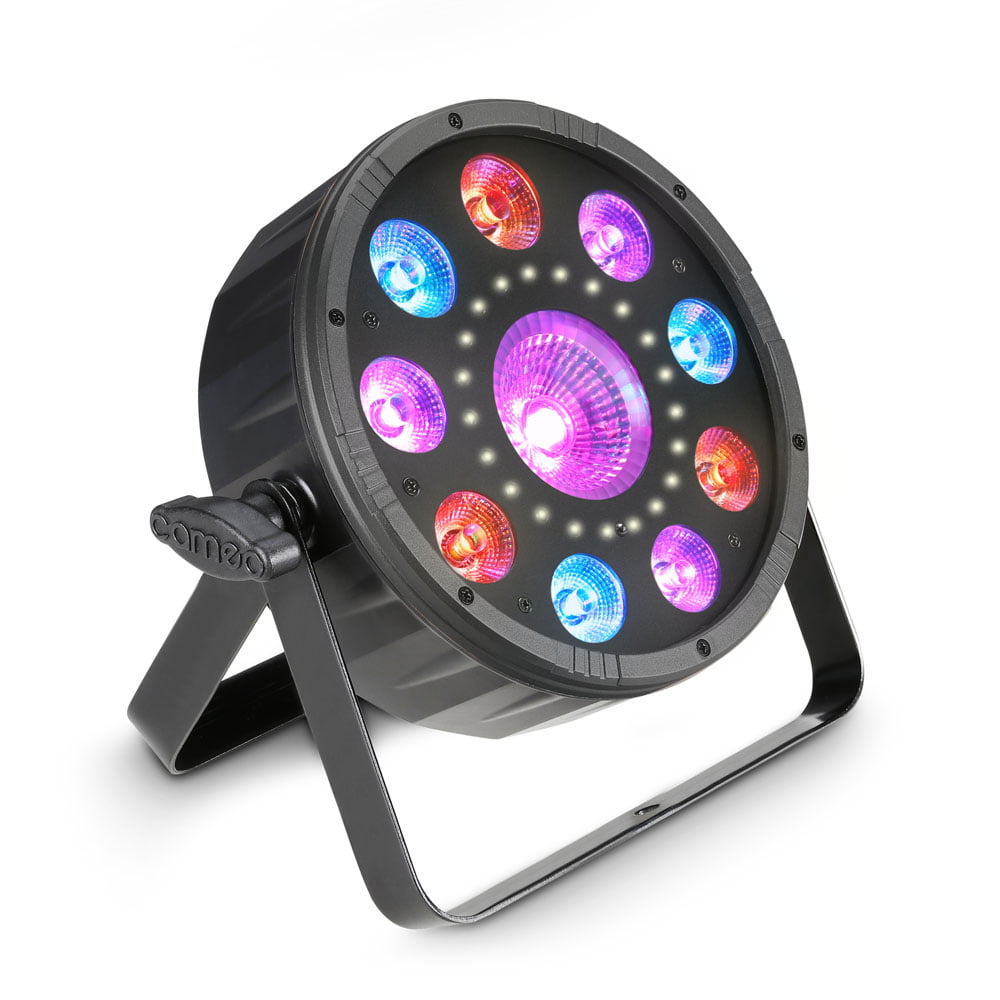

The Cameo Flat Moon is a compact luminaire with shallow depth for dynamic lighting and intense eye-catching effects. It features a central 18 watt RGB LED that is surrounded by 21 cold white SMD strobes and an outer ring of nine RGB+UV LEDs. Each section is individually controllable enabling blacklight, high-speed strobe or PAR light applications with rich colour mixing. These can be freely combined for even greater versatility and truly spectacular lighting at any show or venue.
With 4 DMX modes, sound activation or automatic operation with amazing built-in programs and the included infrared remote the Flat Moon offers versatile control options. The fixture allows for master, slave or standalone operation, and a bright 4- button display permits easy configuration and manual control. Made of durable ABS, the black housing provides 3-pin DMX and IEC connectors for convenient signal and power linking while the integrated low-noise fan ensures cool and quiet operation. The Flat Moon comes with an adjustable bracket for flexible mounting options.
| Product type | LED PAR Lighting |
| Type | LED / Strobe / Effects |
| Colour Spectrum PAR | RGB+UV |
| LED Type PAR | 4 W |
| Number of LEDs PAR | 9 |
| Colour Spectrum centre LED | RGB |
| Number of centre LEDs | 1 |
| LED Type centre LEDs | 18 W |
| Colour Spectrum Strobe | CW |
| Number of LEDs Strobe | 21 |
| LED Type Strobe | 0.5 W |
| DMX input | XLR 3-pin male |
| DMX mode | 22-channel, 3-channel, 5-channel, 9-channel |
| DMX Functions | Auto programs, colour macro, master dimmer, RGB centre LED, RGB+UV, sound control, strobe |
| DMX output | XLR 3-pin female |
| Standalone modes | Auto programs, Master / Slave mode, Setup, sound programs, static colour |
| Controls | Down, Enter, Mode, Up |
| Indicators | 4×7 segment LED display |
| Power connector | IEC power input and output |
| Operating voltage | 100 V AC – 240 V AC, 50 – 60 Hz |
| Power consumption | 67 W |
| Fuse | T1.0A |
| Temperature range | 0 – 40 °C |
| Housing material | ABS plastic |
| Cabinet colour | Black |
| Housing Cooling | fan |
| Width | 207 mm |
| Height | 78 mm |
| Depth | 207 mm |
| Weight | 1,8 kg |
| Other features | adjustable mounting bracket included, IR Remote Control, safety eyelet |
