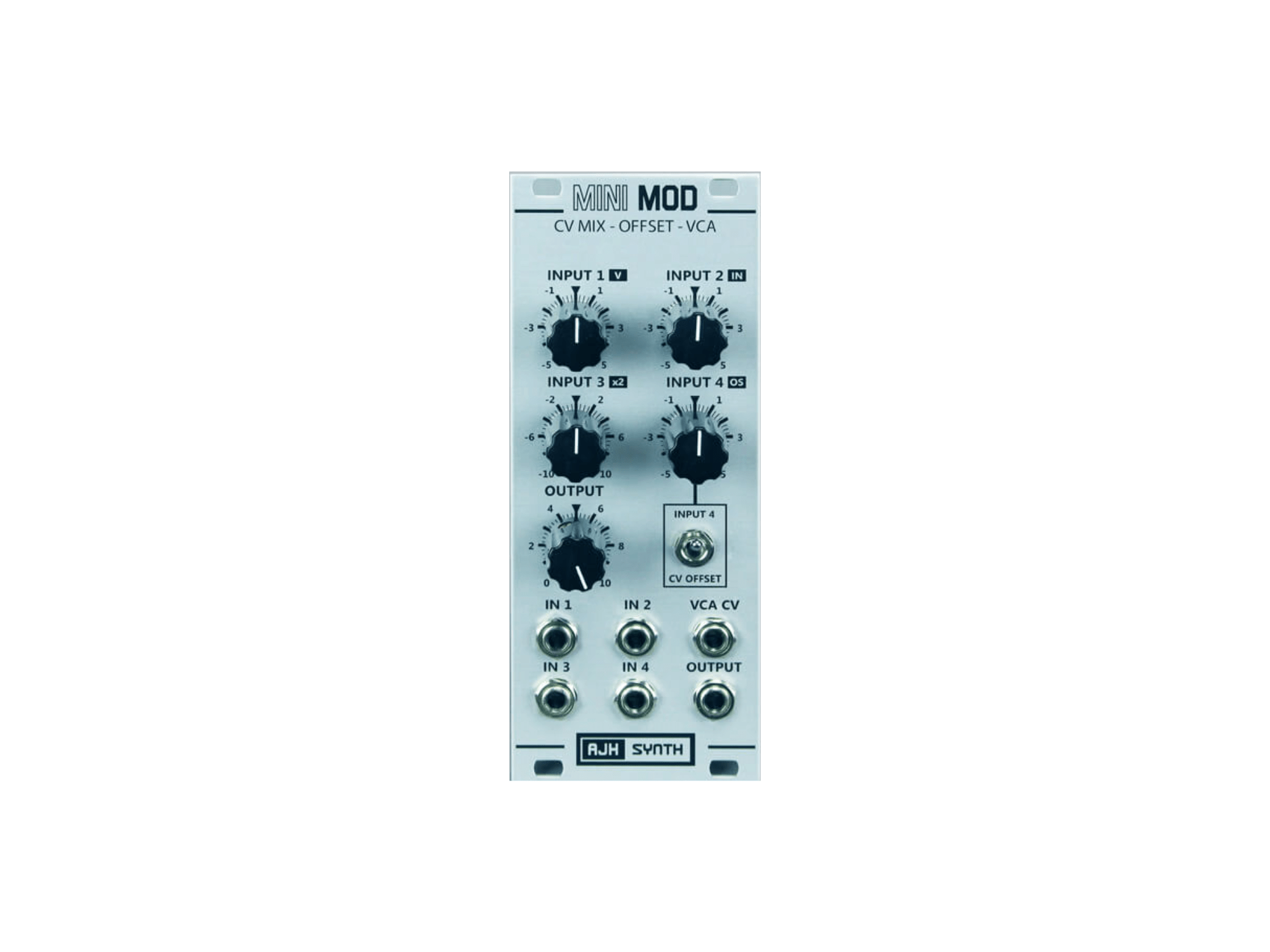

AJH Synth MiniMod CVMix-Offset-VCA Silver

AJH Synth MiniMod CVMix-Offset-VCA Silver

Original price was: €235[:lv].[:]00.Current price is: €225[:lv].[:]00.

This useful module is a Bipolar Mixer, DC voltage source and Linear DC coupled VCA – With no input to channel 1 the Input 1 pot becomes a voltage source with a range of +/- 6V. The control pot and input for channel 4 can be switched to become an offset control and/or a second CV input for the VCA. Input 3 has 2x gain, so it can amplify lower level CV’s too.

Kategorija: Birkas:

Apraksts

The MiniMod CVMix-Offset-VCA is a compact 10hp wide Eurorack format module. It has been developed to offer a range of useful utilities for the MiniMod system and of course other Eurorack synthesisers..

It comprises a four channel polarising mixer, amplifier, inverter, a voltage source and a DC coupled VCA with switchable CV offset.

Uses include mixing together CV modulation sources, mixing an offset voltage with a CV source, converting a bipolar +/- 5V modulation into a unipolar 0 to +5V

This is possibly the most useful utility module that can be added to a modular system, you’ll wonder how you ever managed without it!

Module Width: 10hp

Module Depth: 26mm (Including power lead)

Current Usage: 30mA Positive, 12mA Negative



More information – AJH
